LAUFEN INEOLINK Concealed Cistern Frame for Wall-Hung WC, H9201140000001
156,12 € inc. VAT
LAUFEN INEOLINK concealed cistern frame for wall-hung WC installation. Pre-assembled 500 × 135 × 1120 mm frame with adjustable dual flush and insulated cistern.
- Description
- Additional information
- Specifications
Description

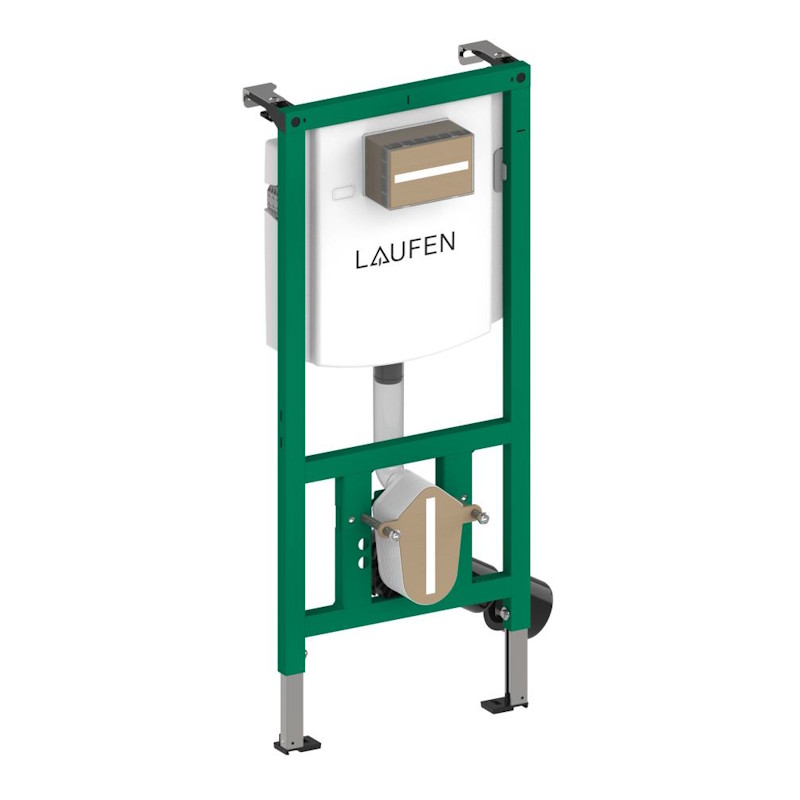

The LAUFEN INEOLINK concealed cistern frame is a reliable pre-assembled installation solution for wall-hung toilets. Its robust adjustable steel structure supports efficient installation in pre-wall and studded-wall constructions.
Key features
- Suitable for wall-hung WC installation
- Pre-assembled self-supporting steel frame
- Front-operated concealed cistern
- Adjustable dual flush: 6/3 or 4.5/3 litres
- Adjustable feet with up to 200 mm height adjustment
- Condensation-insulated cistern
- Dimensions: 500 × 135 × 1120 mm
- Net weight: 12.67 kg
Manufacturer: LAUFEN
Series: INEO / INEOLINK
Product code: H9201140000001
Dimensions: 500 × 135 × 1120 mm
Additional information
| Brand | LAUFEN |
|---|---|
| Length (mm) | 500 |
| Width (mm) | 135 |
| Height (mm) | 1120 |
- Manufacturer: LAUFEN
- Model: H920114 INEOLINK
- Dimensions: 500 x 135 x 1120 mm
- Flush Mechanism: Dual flush (3/6 litres)
- Compatibility: Suitable for LAUFEN wall-hung WC units
- Installation Type: Concealed
- Material: High-quality plastic and metal components
- Maintenance: Front-access panel
- Design: Slim and compact
- Finish Options: Multiple finishes available for compatible flush plates
